Model LG 580.72059 200 – Common Parts & Diagrams

35211A
TUBE ASSEMBLY,SUCTION SINGLE
TUBE ASSEMBLY,SUCTION SINGLE LGE 5211A10062D Contact Us For Availability
View on Model
130410
BASE ASSY,SINGLE
BASE ASSY,SINGLE LGE 3041A10011E Contact Us For Availability
View on Model
130910
CABINET ASSY,SINGLE
CABINET ASSY,SINGLE LGE 3091A10020D Contact Us For Availability
View on Model
135301
GRILLE,FRONT
GRILLE,FRONT LGE 3530A10009A Contact Us For Availability
View on Model
135313
GRILLE,INLET
GRILLE,INLET LGE 3530A10010A Contact Us For Availability
View on Model
135500
COVER,TERMINAL
COVER,TERMINAL LGE 3550U-L006A Contact Us For Availability
View on Model
145200
LINK HOLDER PP JI-350 LW-A0512
LINK HOLDER PP JI-350 LW-A0512 LGE 4520AR3191A Contact Us For Availability
View on Model
149980
SHROUD
SHROUD LGE 4998A10008A Contact Us For Availability
View on Model
152302
FILTER(MECH),A/C
FILTER(MECH),A/C LGE 5231AR2148G Contact Us For Availability
View on Model
159901
VANE,HORIZONTAL
VANE,HORIZONTAL LGE 5990A20001A Contact Us For Availability
View on Model
237200
PANEL,CONTROL
PANEL,CONTROL LGE 3720A20174A Contact Us For Availability
View on Model

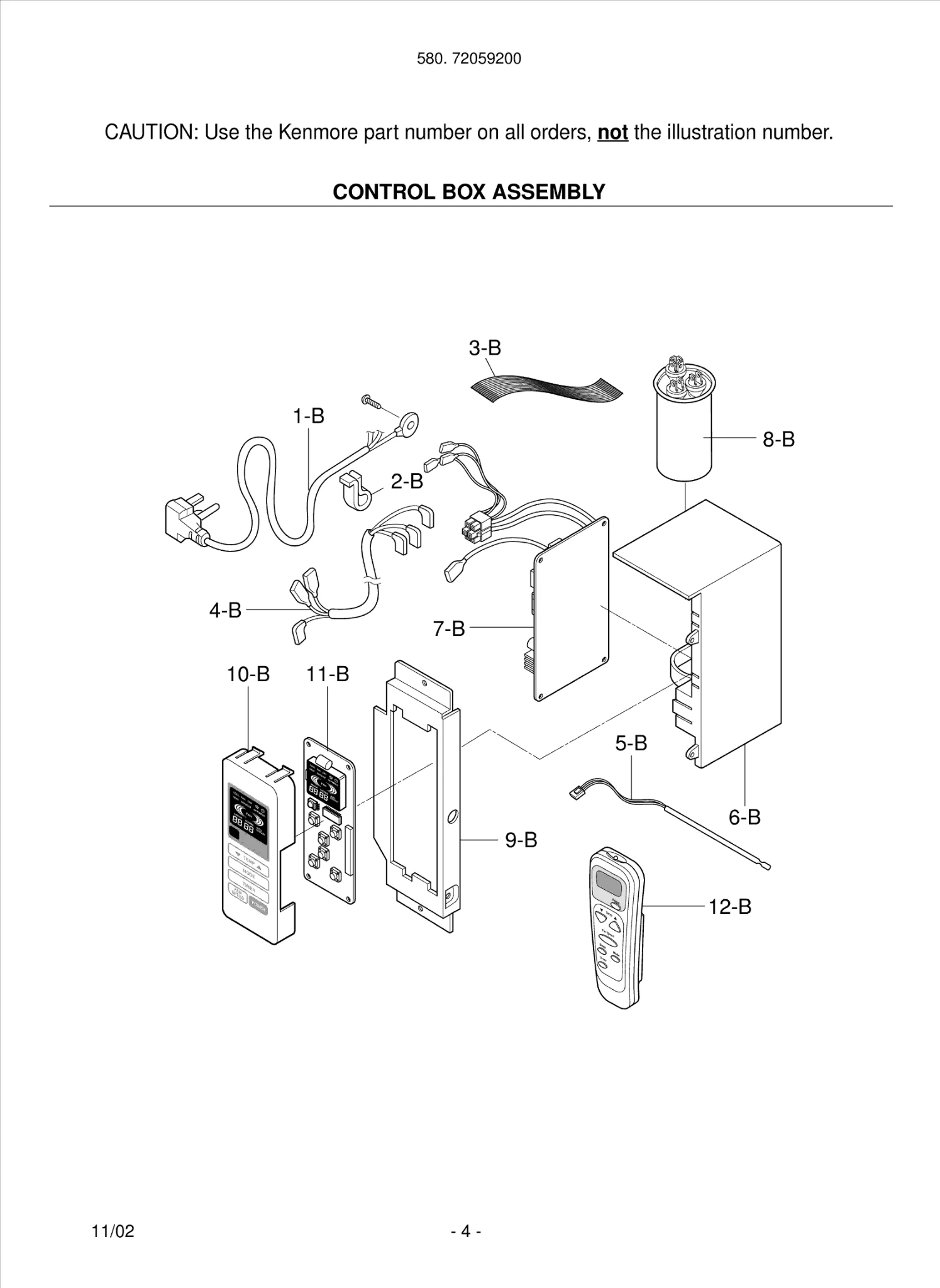

249940-1
CONTROL BOX,SINGLE
CONTROL BOX,SINGLE LGE 4994A20020A Contact Us For Availability
View on Model
249940-2
CONTROL BOX,SINGLE
CONTROL BOX,SINGLE LGE 4994A20021A Contact Us For Availability
View on Model
263230
THERMISTOR ASSY
THERMISTOR ASSY LGE 6323A20003D Contact Us For Availability
View on Model
267110
REMOTE CONTROLLER ASSEMBLY
REMOTE CONTROLLER ASSEMBLY LGE 6711A20053C Contact Us For Availability
View on Model
268712
PWB(PCB) ASSEMBLY,DISPLAY
PWB(PCB) ASSEMBLY,DISPLAY LGE 6871A20244A Contact Us For Availability
View on Model
268714
PWB(PCB) ASSEMBLY,MAIN(AC)
PWB(PCB) ASSEMBLY,MAIN(AC) LGE 6871A20243A Contact Us For Availability
View on Model
346811
Motor Assembly,AC,Single
Motor Assembly,AC,Single LGE 4681A10012M Contact Us For Availability
View on Model
349480
ORIFICE
ORIFICE LGE 4948A10007A Contact Us For Availability
View on Model
352117
TUBE ASSEMBLY,FORMED COND
TUBE ASSEMBLY,FORMED COND LGE 5211AR3399M Contact Us For Availability
View on Model
352380-2
AIR GUIDE, UPPER
AIR GUIDE, UPPER LGE 5238A20004B Contact Us For Availability
View on Model
352390-1
AIR GUIDE ASSY
AIR GUIDE ASSY LGE 5239A30003A Contact Us For Availability
View on Model
354210
EVAPORATOR ASSY,FIRST
EVAPORATOR ASSY,FIRST LGE 5421A20016H Contact Us For Availability
View on Model

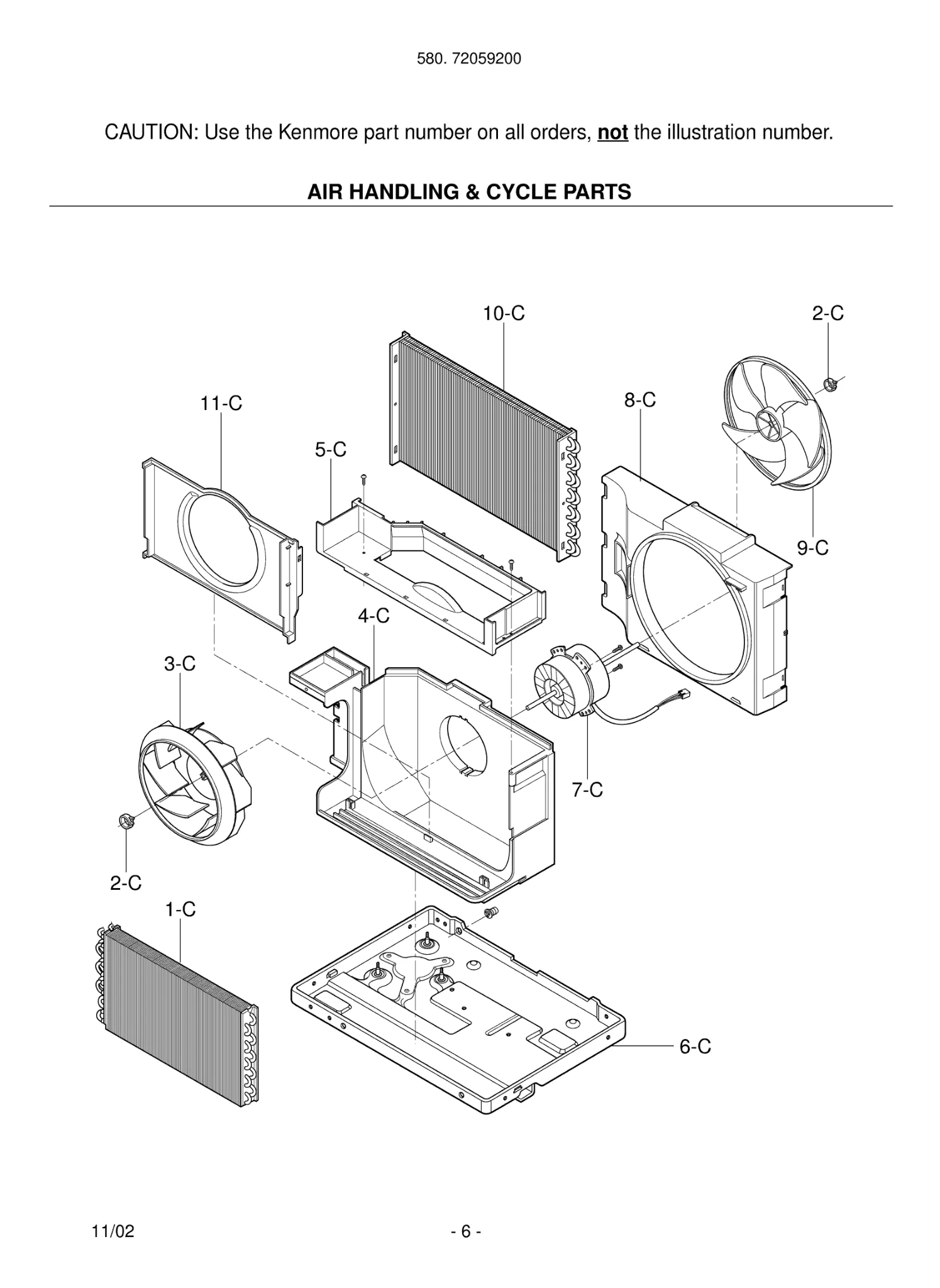

359012
FAN,TURBO
FAN,TURBO LGE 5900A10005A Contact Us For Availability
View on Model
552102
TUBE,CAPILLARY BEND
TUBE,CAPILLARY BEND LGE 5210A30018P Contact Us For Availability
View on Model
554030
CONDENSER ASSY,FIRST
CONDENSER ASSY,FIRST LGE 5403A20009F Contact Us For Availability
View on Model

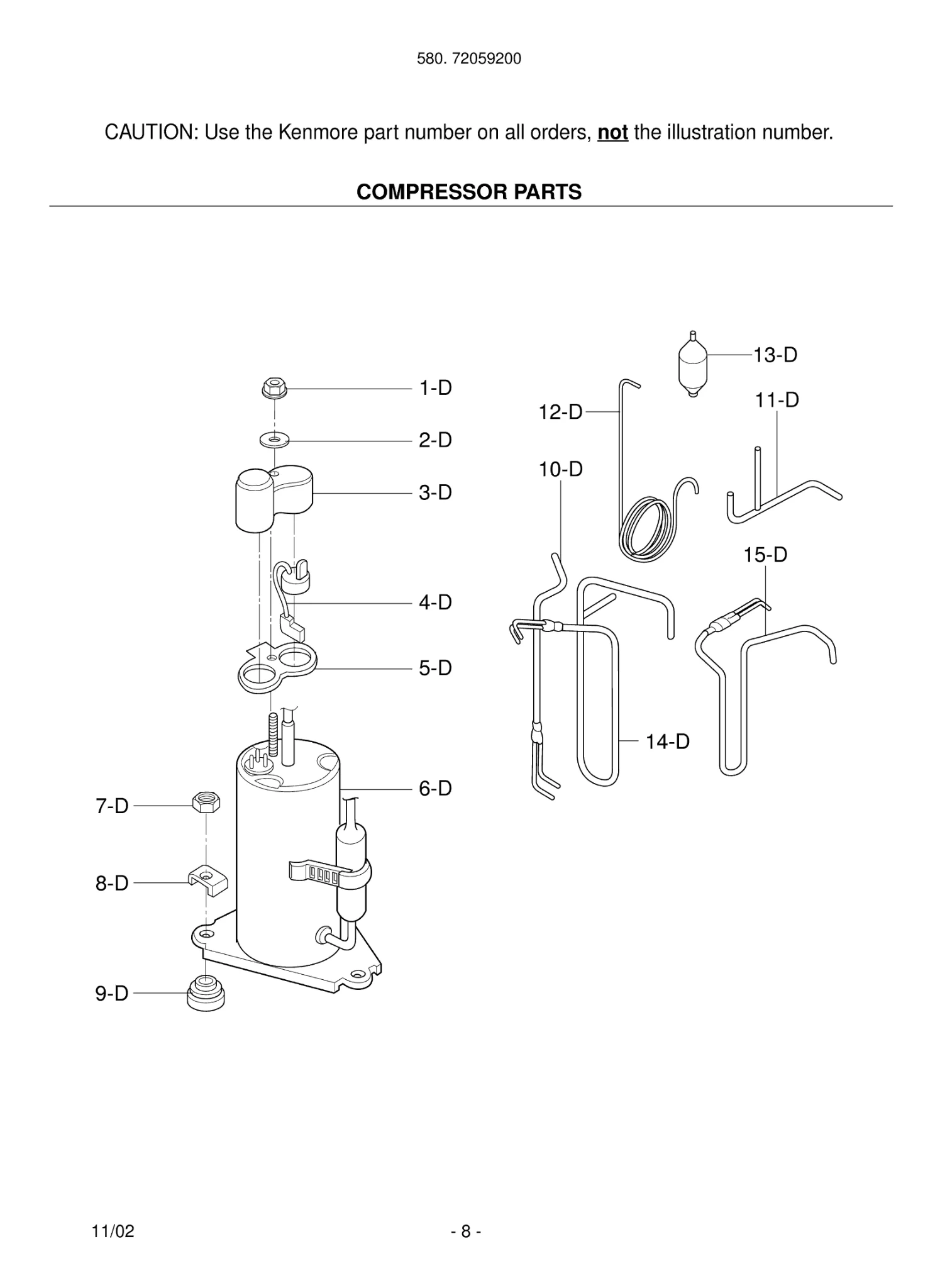

554160
COMPRESSOR SET
COMPRESSOR SET LGE 2520UABC2JA Contact Us For Availability
View on Model
559011
FAN,PROPELLER
FAN,PROPELLER LGE 5900A20017A Contact Us For Availability
View on Model
567502
O.L.P
O.L.P LGE 6750U-L050A Contact Us For Availability
View on Model
738281
LGE 3828A20295C
LGE 3828A20295C LGE 3828A20295C Contact Us For Availability
View on Model
738290
LGE 3828A20291C
LGE 3828A20291C LGE 3828A20291C Contact Us For Availability
View on Model
738501
LABEL,ENERGY
LABEL,ENERGY LGE 3850A20423L Contact Us For Availability
View on Model
749740
UPPER GUIDE LW-A0510/511CL
UPPER GUIDE LW-A0510/511CL LGE 5210AR3196C Contact Us For Availability
View on Model
W1WZZ
GASKET-NUT <GA-0711HCR/0712HCM
GASKET-NUT <GA-0711HCR/0712HCM LGE 4H01058A Contact Us For Availability
View on Model
W4810-1
BRACKET,BASE
BRACKET,BASE LGE 4810A30113A Contact Us For Availability
View on Model
W4810-2
BRACKET
BRACKET LGE 4810A30152A Contact Us For Availability
View on Model
W6631
CONDUCTOR ASSY
CONDUCTOR ASSY LGE 6631AR3843R Contact Us For Availability
View on Model
W6851
CABLE,FLAT
CABLE,FLAT LGE 6850A90001J Contact Us For Availability
View on Model
